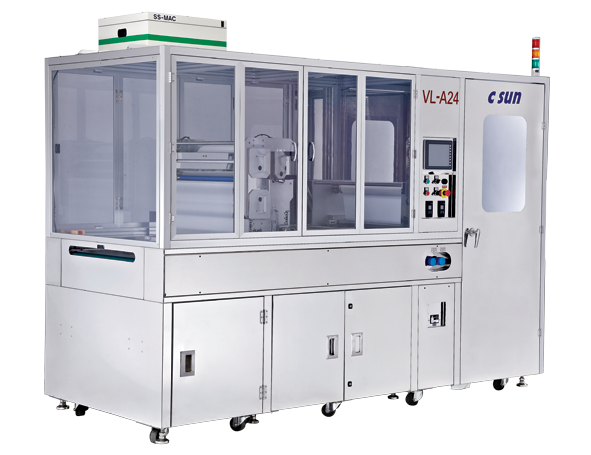

Vacuum Laminator System
- Panel Dimension:
Width: 250-610mm
Length: 250-610mm
Thickness: 0.05-2mm (without copper; single thickness ≥1/3oz) - External Dimension/Weight:
L 2900 * W 1480 * H 2368 (mm) / 2210kg - Lamination Process:
Conveyor Speed: 1-10M/min adjustable
Vacuum: 20-0.2 Torr
Pressure: 0-5 kg/cm2
Heater: 3.4 KW *2
