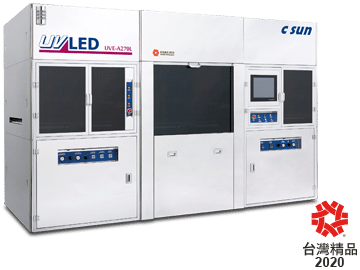

AUTO INNER LAYER UV LED EXPOSURE SYSTEM

AUTO INNER LAYER UV LED EXPOSURE SYSTEM

SKU:UVE-A270/L
Product Contact
Wendy Tseng
  1. Panel Dimension:
    Panel size:254*304.8mm~558.8*635mm
    Panel thickness:0.05~2mm(0.002″-0.08″)
    Film size:609.6*685.8mm(24″*27″)
  2. Capacity:3.5-4 pcs/min
  3. Dimension(W/D/H):2840/2900/2237.5(mm)
  1. Using communication mode compensated monitoring LED brightness quality
  2. Built-in temperature module that can monitor LED board temperature any time
  3. LED light source modular design that easy maintenance and placement
  4. UV LED secondary optical design, small angle light design
  5. Automatic energy calibration and compensation, uniformity can automatic calibration to above 90%.
  6. Through multi-wavelength mixed achieves the best resolution, L/S=50/50μm.
  7. Production speed: 4 pcs/min.
  8. Alignment accuracy: 3σ≦10μm
