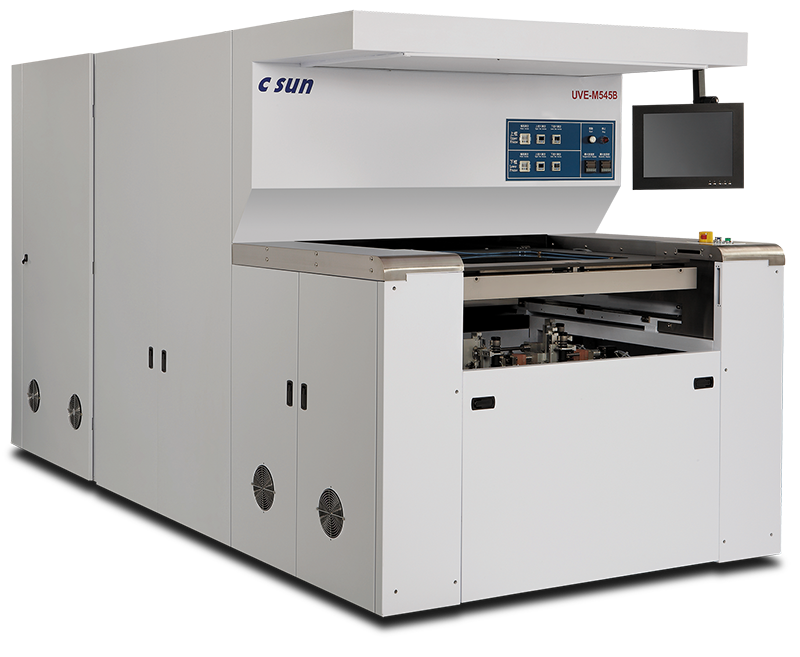

SEMI-AUTO INNER/OUTER LAYER SCATTERED UV EXPOSURE SYSTEM
SEMI-AUTO INNER/OUTER LAYER SCATTERED UV EXPOSURE SYSTEM
SKU：UVE-M545B
Product Contact
Wendy Tseng
- Panel Dimension：
Panel size：305*355mm(12″*14″)~546*622mm(21.5″*24.5″)
Panel thickness：0.05~3.2mm
Film size：24″*27″ - Dimension(W/D/H)：1545/3316/1800+120(mm)
- High-resolution table design
- 4-CCD, auto alignment
- Left and right controlled shutter design
- High speed, high capacity
- Exposure uniformity ≧ 85%
- Film replacement time≦5min
- Exposure chamber temperature controlled 22℃±2℃, wet controlled 55%±5%
