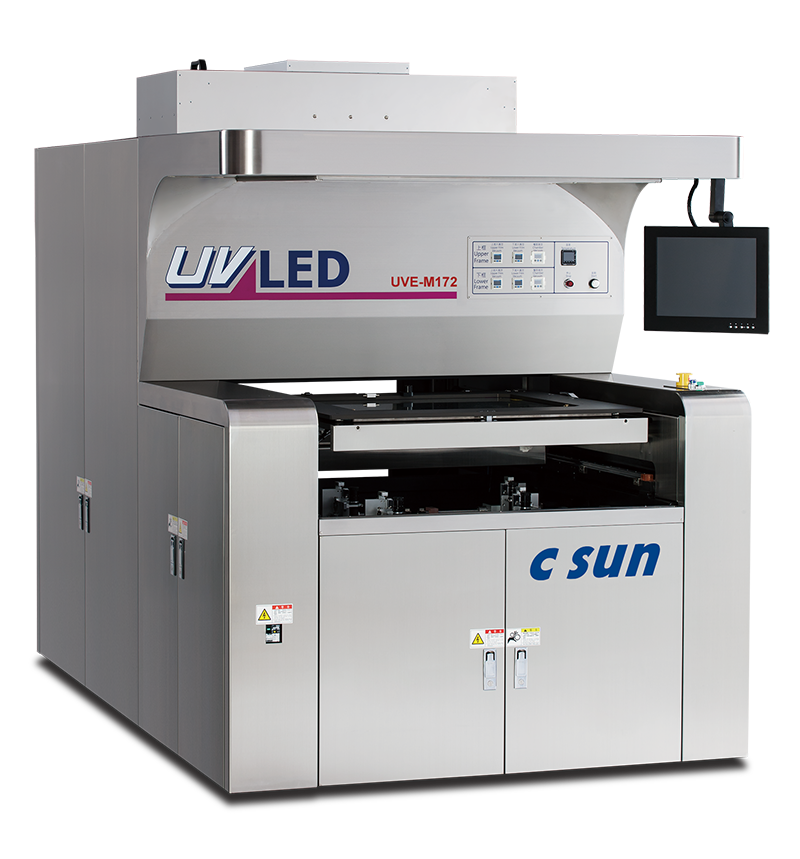

SEMI-AUTO INNER LAYER UV LED EXPOSURE SYSTEM
SEMI-AUTO INNER LAYER UV LED EXPOSURE SYSTEM
SKU：UVE-M172
Product Contact
Wendy Tseng
- Panel Dimension：
Panel size：305*356mm~559*635mm(12″*14″~22″~25″)
Panel thickness：0.1~3.2mm
Film size：24″*27″ - Dimension(W/D/H)：1545/2520/2034+110wheels(mm)
- Using communication mode compensated monitoring LED brightness quality
- Bulit-in temperature module that can monitor LED board temperature any time
- LED light source modular design that easy maintenance and replacement
- UV LED secondary optical design, small angle light design
- Automatic energy calibration and compensation, uniformity can automatic calibration to above 90%
- Through multi-wavelength mixed achieves the best resolution, L/S=50/50μm
- Production speed2.5~3 pcs/min
- Repeatability accuracy≦12μm
