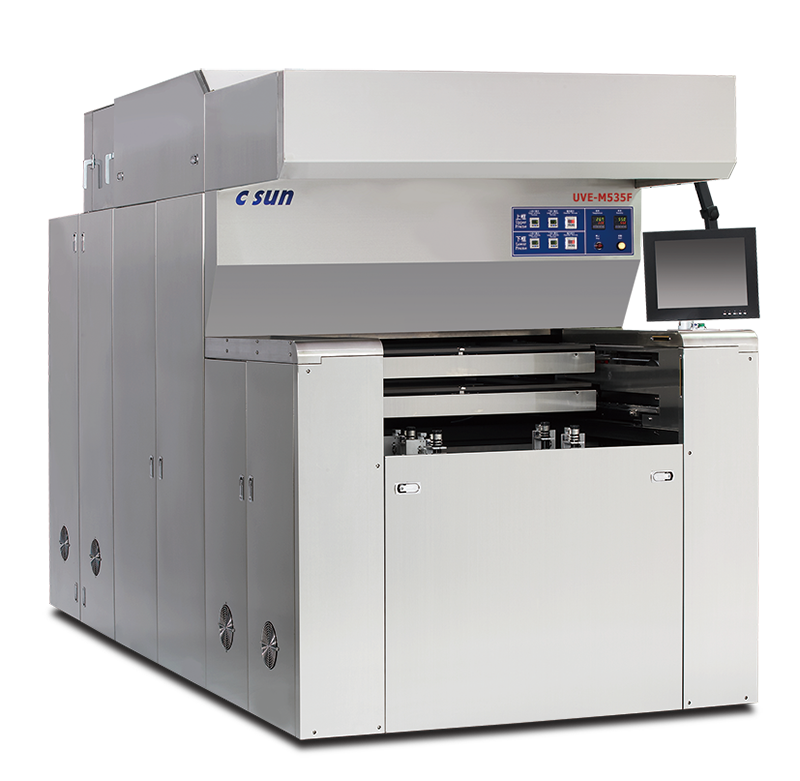

SEMI-AUTO INNER LAYER COLLIMATED UV EXPOSURE SYSTEM

SEMI-AUTO INNER LAYER COLLIMATED UV EXPOSURE SYSTEM

SKU：UVE-M535F
Product Contact
Wendy Tseng
886-952-093-967
Product Enquiry
  1. Panel Dimension：
    Panel size ： 254 * 305 mm – 560 * 660 mm (10″ * 12″-22″ * 26″)
    Thickness ： 0.1 mm ~ 2.0 mm (0.012″-0.08″)
    Artwork dimensions ： 670 mm * 592 mm
  2. Scattered UV system
    Collimated 5 kw, mercury-xenon short arc lamp
    Collimation half angle < 2°
    Declination angle < 2° – Uniformity ±6% – Intensity > 20 mW/cm^2 @365 nm
  3. Dimension
    – W1316 * L3300 * H2140 + 120 mm
    – SUS430
  1. Incloud voltage, current, power and UV sensor
  2. High vacuum controlled -200~-500mmHg
  3. High fortified frame glass
  4. Easy to operate, Chinese/ English / simple Chinese interface
  5. High capacity, duplex exposure at the same time
  6. Abnormal condition, warning alert function works
