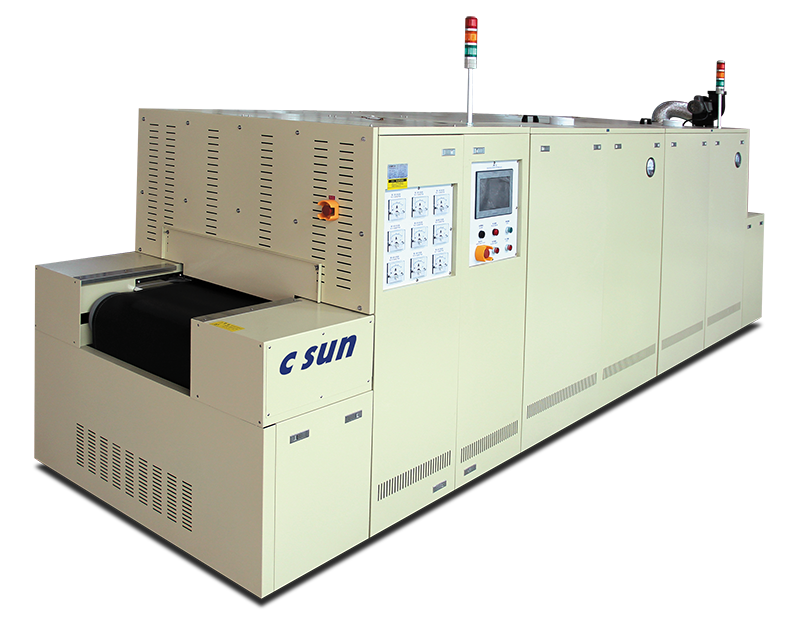

IR/LBCO

IR/LBCO

Product Contact
  1. Body dimensions:W1400 x D20700 x H1700 (mm) / 8600 KG
  2. Winding machine:W1500 x D2250 x H1800 (mm) / 1200 KG
  3. Roll Receiver:W1500 x D2250 x H1800 (mm) / 1200 KG
  4. Glass substrate:Diameter MAX. Φ500 (mm), diameter φ3 “, φ6” universal, width MAX. Φ550 (mm), thickness 60μm ~ 300μm
  5. Electricity:AC380V、3φ、50HZ、147KVA
  6. Air pressure:> 6 kgf / cm²
  1. For aging, silver paste, ink, nano silver and other pre-baked and solid roasted
  2. Simple process, high yield rate
  3. Efficient, energy saving
  4. High uniformity
  5. Saving, green equipment
