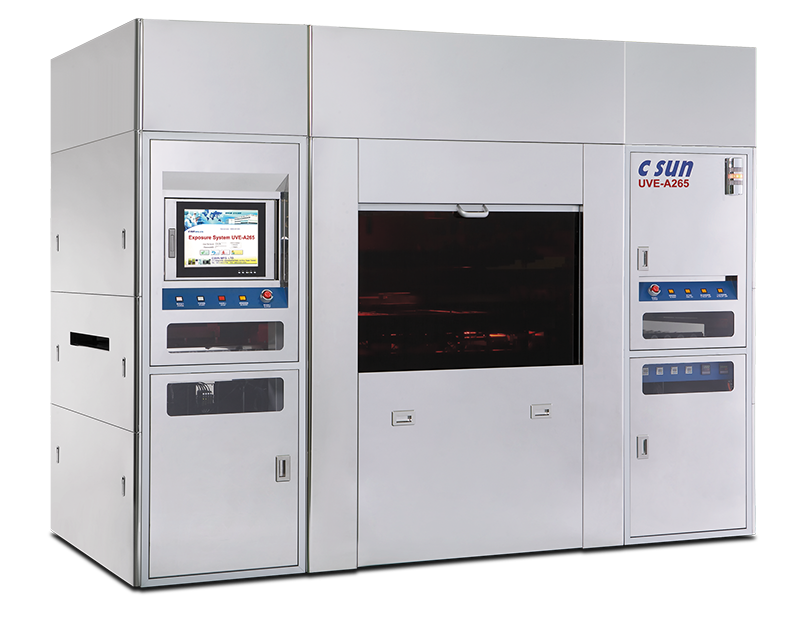

AUTO INNER/OUTER LAYER COLLIMATED UV EXPOSURE SYSTEM
AUTO INNER/OUTER LAYER COLLIMATED UV EXPOSURE SYSTEM
SKU：UVE-A265
Product Contact
Wendy Tseng
- Applicable range：
Panel size：305*356mm(12″*14″)~558*635mm(22″~25″)
Panel thickness：0.05~3.0mm
Film size：24″*27″ - Machine dimensions(W/D/H)：3010/2913/2394(mm)
- Inner / Outer layer double-sided
- The film can be automatically selected single / multi pieces alignment
- Cleanroom class: Class 1000
- Exposure chamber environmental control system effectively increases A / W stability
- Load conveyor roller use SUS polishing
- Load conveyor roller driven by non-contact magnetic rings design without particle concerns
- Exposure table repeatability about ±5μm
- The lower frame lifts to operate easily
- The fixture mechanism of the pre – alignment realizes, the outer layer panel the double – sided exposure design
- Linear motor transfer system to improve the cleanliness, accuracy, speed
- High rigidity base to strengthen machine stability
