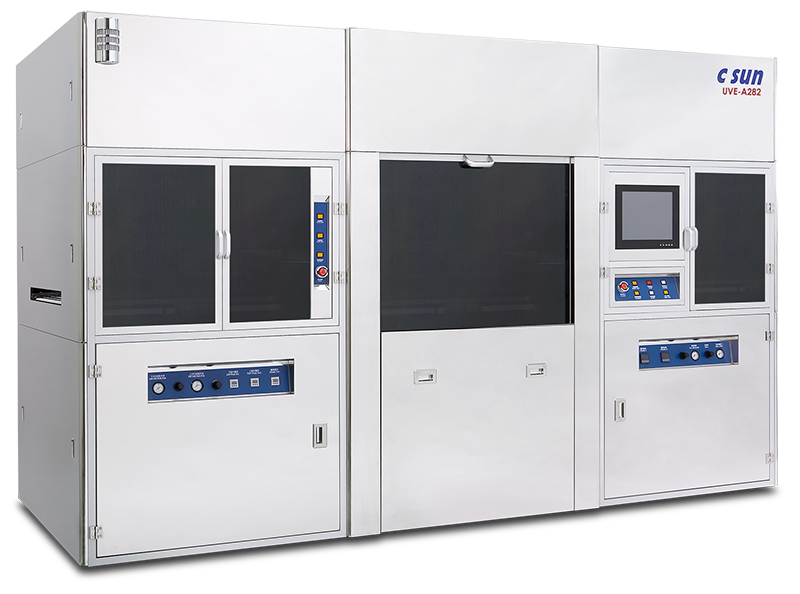

AUTO INNER LAYER SCATTERED UV EXPOSURE SYSTEM
AUTO INNER LAYER SCATTERED UV EXPOSURE SYSTEM
SKU：UVE-A282
Product Contact
Wendy Tseng
- Applicable range：
Panel size：254*305mm~609.6*762mm(10″*12″~24”~30″)
Panel thickness：0.05~2mm
Film size：26″*32″ - Dimension(W/D/H)：3540/2750/2305(mm)
- High alignment accuracy: Alignment accuracy 3ơ< 10 µm
- Load conveyor roller use SUS polishing and driven by non-contact magnetic rings design
- High rigidity base and panel transfer structure to strengthen machine stability
- Extension type CCD vision and backlight module to increase the maximum panel utilization
- High resolution exposure frame design
- Using new type alignment algorithm to ensure sharing film error
- Scattered light used low energy consumption 5kw lamp
- Double-sided exposure at the same time
