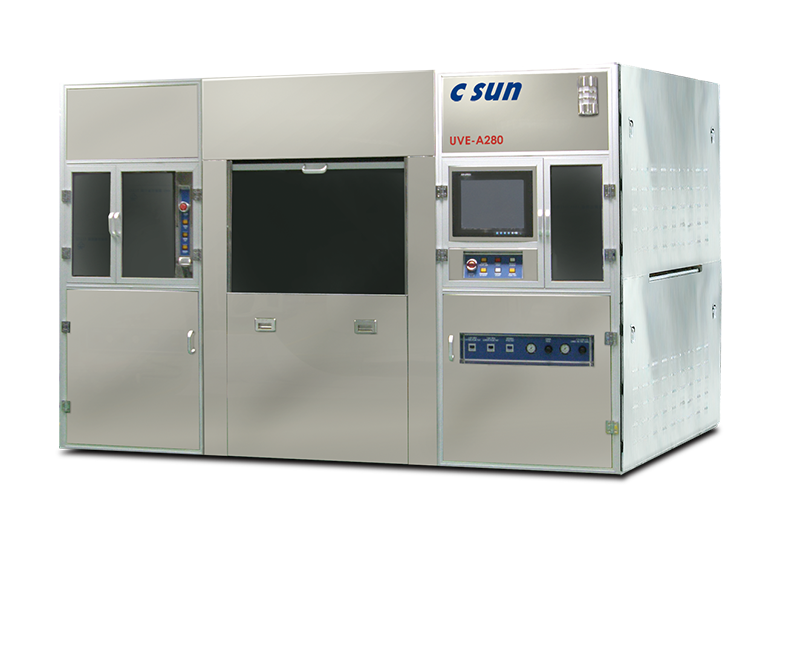

AUTO INNER LAYER SCATTERED UV EXPOSURE SYSTEM

AUTO INNER LAYER SCATTERED UV EXPOSURE SYSTEM

SKU:UVE-A280
Product Contact
Wendy Tseng
  1. Applicable range:
    Panel size:254*304.8mm~558*635mm(10″*14″~22″~25″)
    Panel thickness:0.05~2mm
    Film size:24″*27″
  2. Machine dimensions(W/D/H):2962/2622/2042(mm)
  1. High alignment accuracy: Alignment accuracy 3ơ< 10 µm
  2. Machine appearance is made of SUS material
  3. Load conveyor Roller use SUS polishing to ensure panel alignment quality
  4. Aside alignment use weighting method to ensure the thin panel is not arched
  5. High resolution exposure frame design
  6. Scattered light used low energy consumption 6kw lamp
  7. Double-sided exposure at the same time
