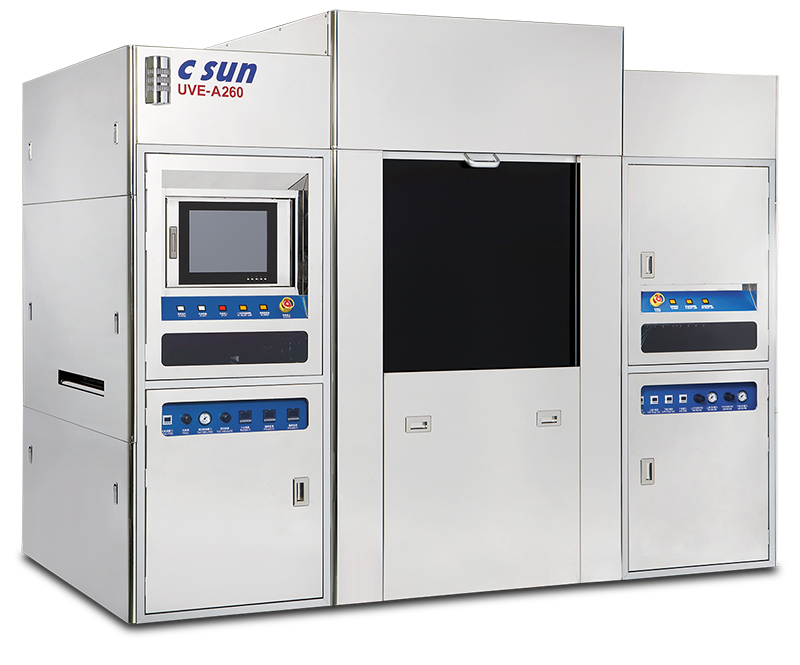

AUTO INNER LAYER COLLIMATED UV EXPOSURE SYSTEM

AUTO INNER LAYER COLLIMATED UV EXPOSURE SYSTEM

SKU:UVE-A260
Product Contact
Wendy Tseng
  1. Applicable range:
    Panel size:254*304.8mm(10″*12″)~558.8*635mm(22-25″)
    Panel thickness:0.05-2mm
    Film size:24″*27″
  2. Machine dimensions(W/D/H):2840/2900/2237.5(mm)
  1. High production speed: Mechanical action time 8 seconds
  2. High alignment accuracy: Alignment accuracy 3ơ< 10 µm
  3. High resolution: Ensure resolution L/S = 2mil / 2mil
  4. Whole machine clean grade: Class 1000
  5. Load conveyor roller driven by non-contact magnetic rings design without particle concerns
  6. High rigidity base to strengthen machine stability
  7. Pass line height 950~1030mm, meet the clean room requirement
  8. Extension type CCD vision and backlight module to increase the maximum panel utilization
  9. Using new type alignment algorithm to ensure sharing film error
  10. Exposure chamber environmental control system effectively increases A / W stability
  11. Linear motor transfer system to improve the cleanliness, accuracy, speed
